Maerklin model train H0 register

KEY DATA
Product Name	37740 Diesel locomotive - V 160 (216)
Object type	Locomotive-Diesel
Product Line	Märklin
Era	1970-1990 (IV)
Manufactured years	2011-2012
Type of housing	Metal
Length	18.4 cm
Technology	Digital MFX
Railway company	DE-DB
Märklin RRP (Year)	280€ (2014)
Koll valuation (Year)	170€ (2022)
Url to Märklin	Klick to GoTo www.maerklin.de

Search for more products in the register!

No	Obj.No	Obj.txt	Category	Description

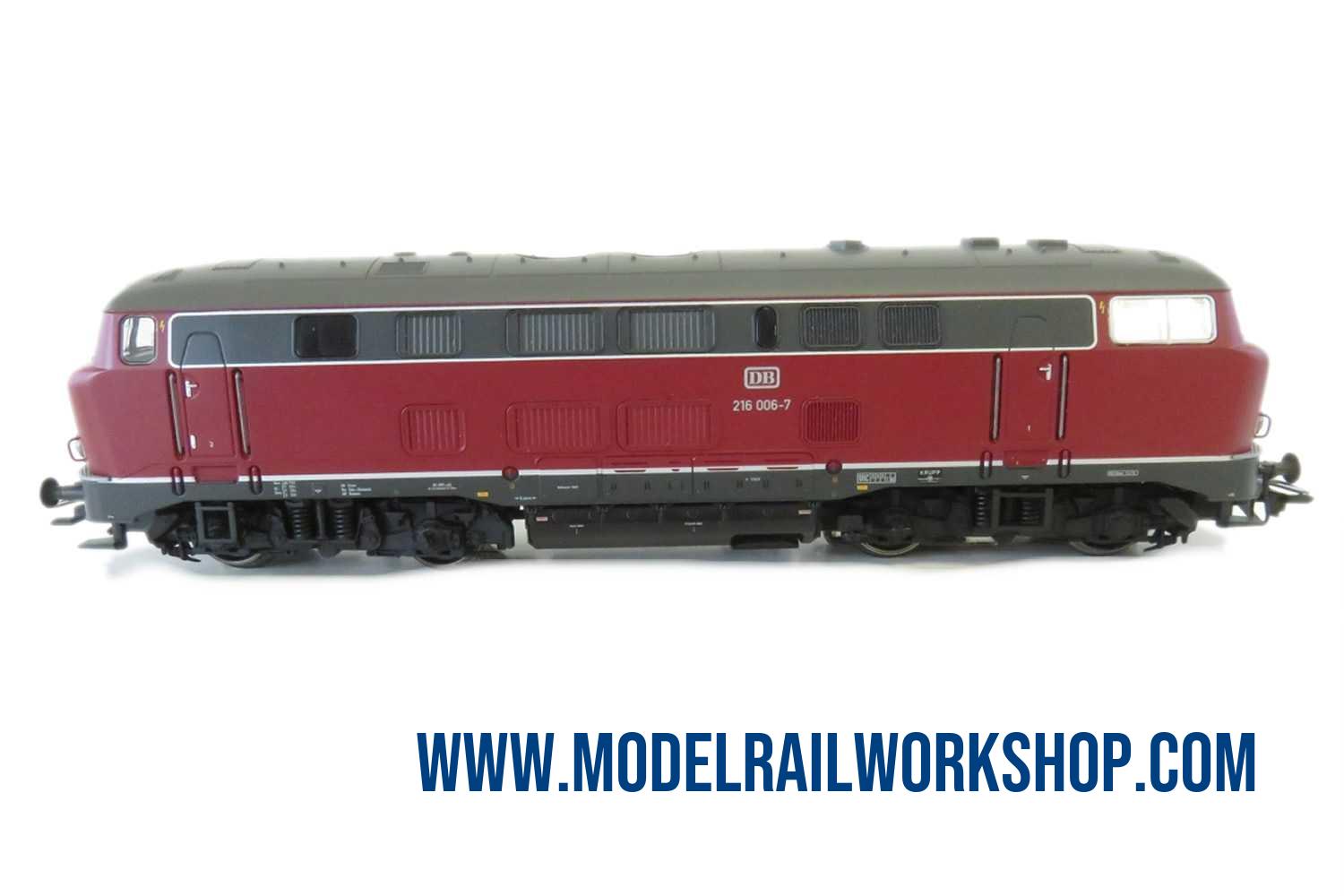

37740-1	216 006-7	DB	V160	2011-2015 - Diesel locomotive Red/Grey
37740-10	216 004-2	DB	V160	2013-2014 Diesel loc - red/gray- included in train set 29740

Description
Diesel Locomotive. V160 German Federal Railroad (DB) class 216 Lollo general-purpose locomotive as a pre-production version. Standard paint scheme with a crimson red locomotive body. Different vent and window arrangements on the sides as with the prototype. The locomotive looks as it did around 1975. This locomotive is also included in : Edition: 2013-2014 Diesel loc - red/gray- included in train set 29740 with loc no 216 004-2 Source: www.maerklin.de V 160 Pre-Production Series In 1956 the German Federal Railroad‘s central office in Munich contracted with the locomotive builder Krupp in Essen to develop a single-motor, general-purpose diesel locomotive. Originally, the plan was for a unit with a nominal power output of 1,600 horsepower and a class designation of V 160 in keeping with the conventions of that time. The plan for the locomotive was for two engineer‘s cabs, two two-axle trucks, a maximum speed of 120 km/h / 75 mph, a maximum length over the buffers of around 16,000 mm / 52 feet 6 inches as well as sufficient train heating for an express train of ten cars. A maximum axle load of 18 metric tons was planned to enable operation on expanded branch lines. Hydraulic fluid transmissions were planned for transmitting power to the wheels. It was planned that the new V 160 would replace the provincial steam locomotives with the class numbers 38.10, 39, 55.25, 56.20, and 57.10 as well as the standard design locomotive with the class numbers 03 and 50. During the development phase of the V 160 it was possible to increase the motor performance to 1,900 horsepower with improved supercharging and forced air cooling. In 1960/61 the firm of Krupp delivered six prototypes as the road numbers V 160 001-006, which were equipped with different 1,900 horsepower motors and gear drives. In 1962/63 four additional units followed (V 160 007-010) from Henschel. The first nine locomotives had fully rounded ends beneath the windshields which quickly gave them the nickname „Lollo“ (after the Italian film star Gina Lollobrigida). The tenth locomotive by contrast had the angled look taken from the V 320 001, that was to become the typical characteristic of the entire V 160 family. The frame and the superstructure were of lightweight steel construction, completely welded. Between the two engineer‘s cabs insulated against sound was the engine room with its propulsion layout, cooling equipment, and oil-fired forced-flow boiler for train heating. It was accessible by a side corridor. The power transmission was done with a Voith fluid transmission that had to be developed from scratch for motors of the performance class. In addition, road numbers V 160 001-009 also had equipment for shuttle train operation and multiple unit lashups.

Description

Diesel Locomotive. V160

German Federal Railroad (DB) class 216 Lollo general-purpose locomotive as a pre-production version. Standard paint scheme with a crimson red locomotive body. Different vent and window arrangements on the sides as with the prototype. The locomotive looks as it did around 1975.

This locomotive is also included in :
Edition: 2013-2014 Diesel loc - red/gray- included in train set 29740 with loc no 216 004-2

Source: www.maerklin.de
V 160 Pre-Production Series In 1956 the German Federal Railroad‘s central office in Munich contracted with the locomotive builder Krupp in Essen to develop a single-motor, general-purpose diesel locomotive. Originally, the plan was for a unit with a nominal power output of 1,600 horsepower and a class designation of V 160 in keeping with the conventions of that time. The plan for the locomotive was for two engineer‘s cabs, two two-axle trucks, a maximum speed of 120 km/h / 75 mph, a maximum length over the buffers of around 16,000 mm / 52 feet 6 inches as well as sufficient train heating for an express train of ten cars. A maximum axle load of 18 metric tons was planned to enable operation on expanded branch lines. Hydraulic fluid transmissions were planned for transmitting power to the wheels. It was planned that the new V 160 would replace the provincial steam locomotives with the class numbers 38.10, 39, 55.25, 56.20, and 57.10 as well as the standard design locomotive with the class numbers 03 and 50. During the development phase of the V 160 it was possible to increase the motor performance to 1,900 horsepower with improved supercharging and forced air cooling. In 1960/61 the firm of Krupp delivered six prototypes as the road numbers V 160 001-006, which were equipped with different 1,900 horsepower motors and gear drives. In 1962/63 four additional units followed (V 160 007-010) from Henschel. The first nine locomotives had fully rounded ends beneath the windshields which quickly gave them the nickname „Lollo“ (after the Italian film star Gina Lollobrigida). The tenth locomotive by contrast had the angled look taken from the V 320 001, that was to become the typical characteristic of the entire V 160 family. The frame and the superstructure were of lightweight steel construction, completely welded. Between the two engineer‘s cabs insulated against sound was the engine room with its propulsion layout, cooling equipment, and oil-fired forced-flow boiler for train heating. It was accessible by a side corridor. The power transmission was done with a Voith fluid transmission that had to be developed from scratch for motors of the performance class. In addition, road numbers V 160 001-009 also had equipment for shuttle train operation and multiple unit lashups.
